Name: STORM INLET

Display Field: Inlet_Subtype

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This data was collected using a Trimble GPS unit or was mapped from land development plans. This data is to be used for inventory of city assets, maintenance information, storm water quality control, and hydrologic studies. The feature attributes include inlet type, top elevation, invert elevation, condition, status, installation date, engineering plan numbers, coordinate data, and owner information.

Service Item Id: da203cbcc60a449c884e390c67dfcb7d

Copyright Text: Maryam Wagner (Senior Engineering Assistant), William Tuck (Engineering Assistant II)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6210547.532521635
YMin: 2001132.454411894
XMax: 6257766.048976809
YMax: 2067802.9660837203
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [0, 92, 230, 255]
Size: 7.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[255, 255, 255, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Inlet_Type ( type: esriFieldTypeInteger, alias: Inlet Type , Coded Values: [1: Catch Basin] , [2: Curb Inlet] , [3: Median Inlet] , ...5 more... )
• Inlet_Subtype ( type: esriFieldTypeString, alias: Inlet Subtype, length: 6 , Coded Values: [D-1: Curb Inlet Type A] , [D-2: Curb Inlet Type B] , [D-3: Curb Inlet Type c] , ...16 more... )
• RimTC_Elev ( type: esriFieldTypeDouble, alias: RimTC Elev )
• Flow_Elev ( type: esriFieldTypeDouble, alias: Flow Elev )
• Grate ( type: esriFieldTypeString, alias: Grate, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• Stamped ( type: esriFieldTypeString, alias: Stamped, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• Condition ( type: esriFieldTypeInteger, alias: Condition , Coded Values: [1: Very Good] , [2: Good] , [3: Fair] , ...3 more... )
• Function_ ( type: esriFieldTypeInteger, alias: Function , Coded Values: [1: Maintained in good condition] , [2: Not maintained in poor condition] , [3: Overgrown] , ...4 more... )
• Status ( type: esriFieldTypeInteger, alias: Status , Coded Values: [1: Active] , [2: Abandoned] , [3: Filled and abandoned] , ...8 more... )
• Watershed ( type: esriFieldTypeString, alias: Watershed, length: 6 , Coded Values: [902.11: Lower Ysidora] , [903.11: Mission] , [903.12: Bonsal] , ...5 more... )
• Iplan_No ( type: esriFieldTypeString, alias: Iplan No, length: 18 )
• GPlan_No ( type: esriFieldTypeString, alias: GPlan No, length: 18 )
• MPlan_No ( type: esriFieldTypeString, alias: MPlan No, length: 18 )
• Plan_History ( type: esriFieldTypeString, alias: Plan History, length: 250 )
• CAD_File ( type: esriFieldTypeString, alias: CAD File, length: 250 )
• Plan_Date ( type: esriFieldTypeDate, alias: Plan Date, length: 8 )
• AB_Date ( type: esriFieldTypeDate, alias: As Built, length: 8 )
• DMP_Status ( type: esriFieldTypeString, alias: DMP Status, length: 1 , Coded Values: [1: Included in the Master Drainage Plan] , [2: Not Included in the Mater Drainage Plan] )
• Editor ( type: esriFieldTypeString, alias: Editor, length: 2 , Coded Values: [MW: Maryam Wagner] , [SN: Saeid Nouri-Bushehri] , [ST: Intern/Student/ Temporary Staff] , ...6 more... )
• Edit_Date ( type: esriFieldTypeDate, alias: Edit Date, length: 8 )
• Edit_Source ( type: esriFieldTypeString, alias: Edit Source, length: 250 )
• Zone ( type: esriFieldTypeInteger, alias: Zone , Coded Values: [1: Zone 1] , [2: Zone 2] , [3: Zone 3] , ...9 more... )
• X_Coordinate ( type: esriFieldTypeDouble, alias: X_Coordinate )
• Y_Coordinate ( type: esriFieldTypeDouble, alias: Y_Coordinate )
• Z_Coordinate ( type: esriFieldTypeDouble, alias: Z_Coordinate )
• D_Coordinate ( type: esriFieldTypeString, alias: D_Coordinate, length: 250 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• Owner ( type: esriFieldTypeString, alias: Owner, length: 3 , Coded Values: [Cit: City of Oceanside] , [Pvt: Private] , [Car: Carlsbad] , ...12 more... )
• Data_Dictionary ( type: esriFieldTypeString, alias: Data Dictionary, length: 20 )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• Data_File ( type: esriFieldTypeString, alias: Data File, length: 20 )
• Depth ( type: esriFieldTypeDouble, alias: Depth )
• FacilityID ( type: esriFieldTypeString, alias: FacilityID, length: 30 )
• BMP ( type: esriFieldTypeString, alias: BMP, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• BMP_Type ( type: esriFieldTypeString, alias: BMP_Type, length: 8 , Coded Values: [BBASIN: Bioretention Basin] , [BSWALE: Bioretention Swale] , [CONWET: Constructed Wetland] , ...19 more... )
• Datafile ( type: esriFieldTypeString, alias: Datafile, length: 20 )
• Data_Dicti ( type: esriFieldTypeString, alias: Data_Dicti, length: 20 )
• GPS_Height ( type: esriFieldTypeDouble, alias: GPS_Height )
• Northing ( type: esriFieldTypeDouble, alias: Northing )
• Easting ( type: esriFieldTypeDouble, alias: Easting )
• Photo ( type: esriFieldTypeString, alias: Photo, length: 100 )
• NCTDPlan_No ( type: esriFieldTypeString, alias: NCTDPlan No, length: 18 )
• GBALINK ( type: esriFieldTypeInteger, alias: GBALINK )
• TILE_NO ( type: esriFieldTypeString, alias: TILE_NO, length: 4 )
• SEQ_NO ( type: esriFieldTypeInteger, alias: SEQ_NO )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Trash_Rack ( type: esriFieldTypeString, alias: Trash_Rack, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• INLUCITY ( type: esriFieldTypeSmallInteger, alias: INLUCITY )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• MAINT_BY ( type: esriFieldTypeString, alias: MAINT_BY, length: 255 , Coded Values: [City: City] , [Contractor: Contractor] , [Private: Private] , ...3 more... )
• CMP ( type: esriFieldTypeString, alias: CMP, length: 10 , Coded Values: [Y: Yes] , [N: No] )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

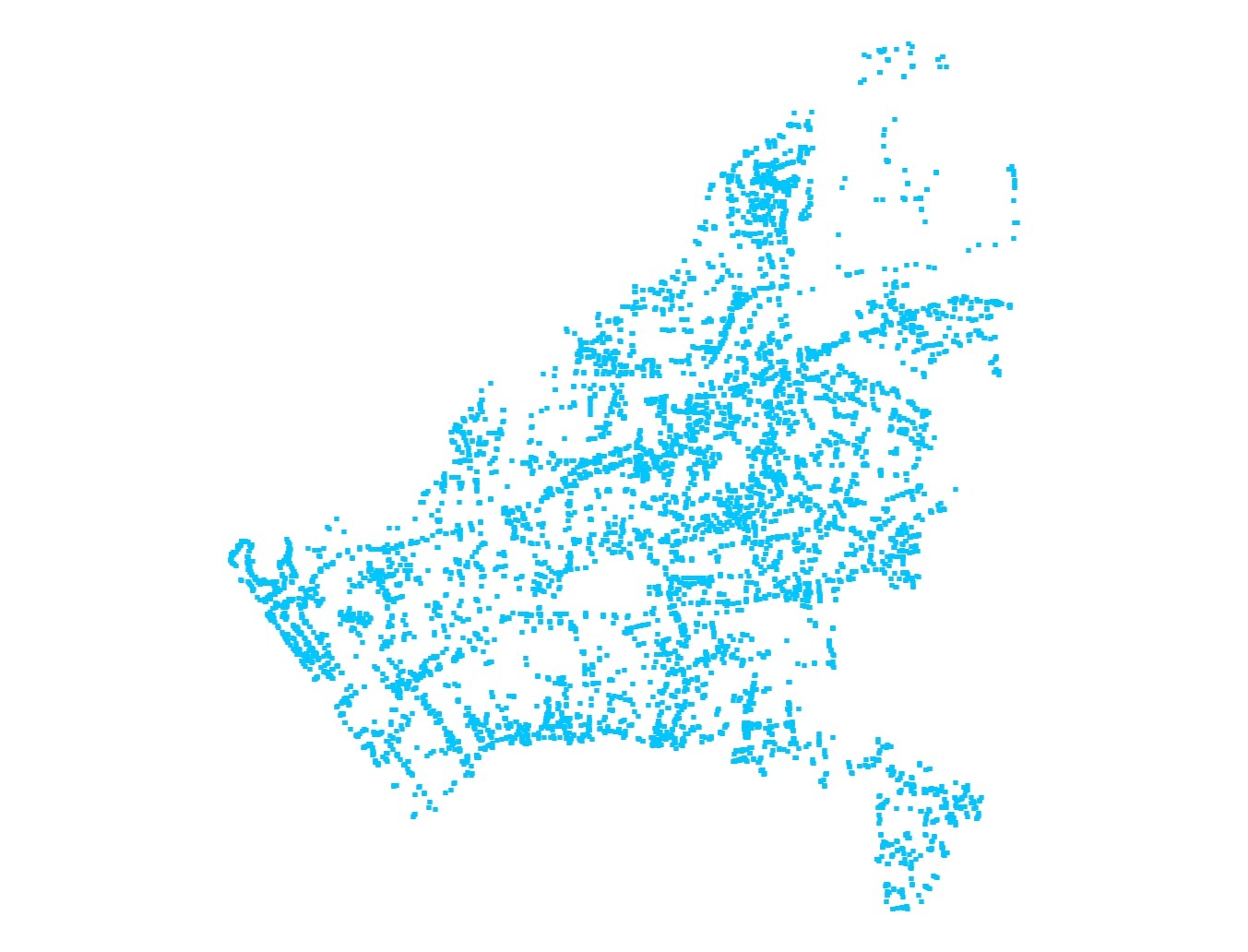

  Iteminfo   Thumbnail   Metadata
