Name: STORM OUTLET

Display Field: Outlet_Subtype

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This data was collected using a Trimble GPS unit or was mapped from land development plans. This data is to be used for inventory of city assets, maintenance information, storm water quality control, and hydrologic studies. The feature attributes include outlet type, outlet subtype, top elevation, width, hieght, flowline elevation, condition, function, status, installation date, engineering plan numbers, coordinate data, and owner information.

Service Item Id: da203cbcc60a449c884e390c67dfcb7d

Copyright Text: Maryam Wagner (Senior Engineering Assistant), William Tuck (Engineering Assistant II)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6210655.099563718
YMin: 2002409.072265476
XMax: 6257740.901061222
YMax: 2052987.609887734
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSSquare
Color: [0, 112, 255, 255]
Size: 7.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Outlet_Type ( type: esriFieldTypeInteger, alias: Outlet_Type , Coded Values: [1: Headwall] , [2: HW With Energy Dissipator] , [3: HW with RipRap] , ...6 more... )
• Outlet_Subtype ( type: esriFieldTypeString, alias: Outlet_Subtype, length: 6 , Coded Values: [D-30: Type A-Straight Headwall (Circular Pipe)] , [D-31: Type A-Straight Headwall (CSP Arch Pipe)] , [D-33: Type B -Stright Headwall (CSP Arch Pipe)] , ...11 more... )
• Outlet_Width ( type: esriFieldTypeInteger, alias: Outlet_Width , Coded Values: [4: 4"] , [6: 6"] , [8: 8"] , ...26 more... )
• Outlet_Ht_Length ( type: esriFieldTypeInteger, alias: Outlet_Ht_Length , Coded Values: [4: 4"] , [6: 6"] , [8: 8"] , ...26 more... )
• Condition ( type: esriFieldTypeInteger, alias: Condition , Coded Values: [1: Very Good] , [2: Good] , [3: Fair] , ...3 more... )
• Status ( type: esriFieldTypeInteger, alias: Status , Coded Values: [1: Active] , [2: Abandoned] , [3: Filled and abandoned] , ...8 more... )
• Function_ ( type: esriFieldTypeInteger, alias: Function , Coded Values: [1: Maintained in good condition] , [2: Not maintained in poor condition] , [3: Overgrown] , ...4 more... )
• Watershed ( type: esriFieldTypeString, alias: Watershed, length: 6 , Coded Values: [902.11: Lower Ysidora] , [903.11: Mission] , [903.12: Bonsal] , ...5 more... )
• IPlan_No ( type: esriFieldTypeString, alias: IPlan_No, length: 18 )
• GPlan_No ( type: esriFieldTypeString, alias: GPlan_No, length: 18 )
• MPlan_No ( type: esriFieldTypeString, alias: MPlan_No, length: 18 )
• Plan_History ( type: esriFieldTypeString, alias: Plan_History, length: 250 )
• CAD_File ( type: esriFieldTypeString, alias: CAD_File, length: 250 )
• Plan_Date ( type: esriFieldTypeDate, alias: Plan_Date, length: 8 )
• AB_Date ( type: esriFieldTypeDate, alias: AB_Date, length: 8 )
• DMP_Status ( type: esriFieldTypeString, alias: DMP_Status, length: 1 , Coded Values: [1: Included in the Master Drainage Plan] , [2: Not Included in the Mater Drainage Plan] )
• FacilityID ( type: esriFieldTypeString, alias: FacilityID, length: 30 )
• Owner ( type: esriFieldTypeString, alias: Owner, length: 10 , Coded Values: [PropOwner: Private Property Owner] , [City: City of Oceanside] , [USACE: United States Army Corps of Engineers] , ...12 more... )
• Editor ( type: esriFieldTypeString, alias: Editor, length: 2 , Coded Values: [MW: Maryam Wagner] , [SN: Saeid Nouri-Bushehri] , [ST: Intern/Student/ Temporary Staff] , ...6 more... )
• Edit_Date ( type: esriFieldTypeDate, alias: Edit_Date, length: 8 )
• Edit_Source ( type: esriFieldTypeString, alias: Edit_Source, length: 250 )
• Zone ( type: esriFieldTypeInteger, alias: Zone , Coded Values: [1: Zone 1] , [2: Zone 2] , [3: Zone 3] , ...9 more... )
• X_Coordinate ( type: esriFieldTypeDouble, alias: X_Coordinate )
• Y_Coordinate ( type: esriFieldTypeDouble, alias: Y_Coordinate )
• Z_Coordinate ( type: esriFieldTypeDouble, alias: Z_Coordinate )
• D_Coordinate ( type: esriFieldTypeString, alias: D_Coordinate, length: 250 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• Data_Dictionary ( type: esriFieldTypeString, alias: Data Dictionary, length: 20 )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• Data_File ( type: esriFieldTypeString, alias: Data File, length: 20 )
• Photo ( type: esriFieldTypeString, alias: Photo, length: 100 )
• Datafile ( type: esriFieldTypeString, alias: Datafile, length: 20 )
• Data_Dicti ( type: esriFieldTypeString, alias: Data_Dicti, length: 20 )
• GPS_Height ( type: esriFieldTypeDouble, alias: GPS_Height )
• Northing ( type: esriFieldTypeDouble, alias: Northing )
• Easting ( type: esriFieldTypeDouble, alias: Easting )
• Flow_Elv ( type: esriFieldTypeDouble, alias: Flow_Elv )
• NCTDPlan_No ( type: esriFieldTypeString, alias: NCTDPlan No, length: 18 )
• G_Elev ( type: esriFieldTypeDouble, alias: G_Elev )
• GBALINK ( type: esriFieldTypeInteger, alias: GBALINK )
• TILE_NO ( type: esriFieldTypeString, alias: TILE_NO, length: 4 )
• SEQ_NO ( type: esriFieldTypeInteger, alias: SEQ_NO )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• INLUCITY ( type: esriFieldTypeSmallInteger, alias: INLUCITY )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• MAINT_BY ( type: esriFieldTypeString, alias: MAINT_BY, length: 255 , Coded Values: [City: City] , [Contractor: Contractor] , [Private: Private] , ...3 more... )
• CMP ( type: esriFieldTypeString, alias: CMP, length: 10 , Coded Values: [Y: Yes] , [N: No] )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

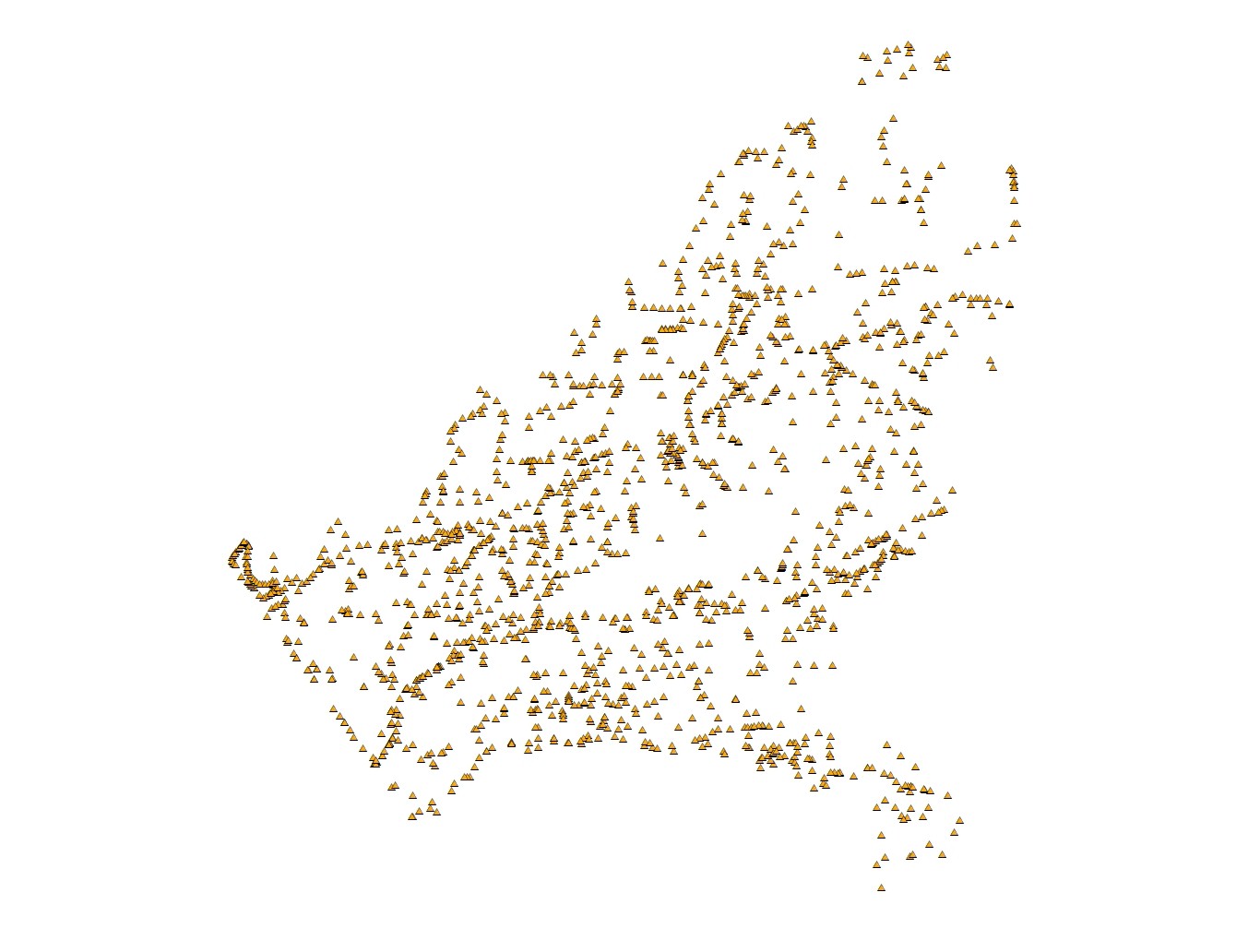

  Iteminfo   Thumbnail   Metadata
