Name: STORM CLEANOUT

Display Field: Owner

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: This data was collected using a Trimble GPS unit or was mapped from land development plans. This data is to be used for inventory of city assets, maintenance information, storm water quality control, and hydrologic studies. The feature attributes include cleanout type, manhole cover type, rim elevation, invert elevation, condition, status, installation date, engineering plan numbers, coordinate data, and owner information.

Service Item Id: da203cbcc60a449c884e390c67dfcb7d

Copyright Text: Maryam Wagner (Senior Engineering Assistant), William Tuck (Engineering Assistant II)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6211824.080821559
YMin: 2001160.1210232228
XMax: 6256682.305409387
YMax: 2052683.0363498926
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [255, 255, 255, 255]
Size: 7.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Cleanout_Type ( type: esriFieldTypeInteger, alias: Cleanout_Type , Coded Values: [1: (D-9) Storm drain cleanout - Type A] , [2: (D-10) Storm drain cleanout - Type B] , [3: Other/custom or unknown type.] , ...2 more... )
• Rim_Elev ( type: esriFieldTypeDouble, alias: Rim Elevation )
• Flow_Elev ( type: esriFieldTypeDouble, alias: Flow Line Elevation )
• Lid_Type ( type: esriFieldTypeInteger, alias: Lid_Type , Coded Values: [1: M-1 (24") Manhole frame and cover - Heavy Duty] , [2: M-2 (24") Manhole frame and cover - Light Duty M-2 (24") Manhole frame and cover - Light Duty M-2 (24") Manhole frame and cover - Light Duty] , [3: M-3 (36") Manhole frame and two concentric covers - Heavy Duty] , ...1 more... )
• Condition ( type: esriFieldTypeInteger, alias: Condition , Coded Values: [1: Very Good] , [2: Good] , [3: Fair] , ...3 more... )
• Function_ ( type: esriFieldTypeInteger, alias: Function , Coded Values: [1: Maintained in good condition] , [2: Not maintained in poor condition] , [3: Overgrown] , ...4 more... )
• Status ( type: esriFieldTypeInteger, alias: Status , Coded Values: [1: Active] , [2: Abandoned] , [3: Filled and abandoned] , ...8 more... )
• Owner ( type: esriFieldTypeString, alias: Owner, length: 3 , Coded Values: [Cit: City of Oceanside] , [Pvt: Private] , [Car: Carlsbad] , ...12 more... )
• Watershed ( type: esriFieldTypeString, alias: Watershed, length: 6 , Coded Values: [902.11: Lower Ysidora] , [903.11: Mission] , [903.12: Bonsal] , ...5 more... )
• IPlan_No ( type: esriFieldTypeString, alias: IPlan_No, length: 18 )
• GPlan_No ( type: esriFieldTypeString, alias: GPlan_No, length: 18 )
• MPlan_No ( type: esriFieldTypeString, alias: MPlan_No, length: 18 )
• Plan_History ( type: esriFieldTypeString, alias: Plan_History, length: 250 )
• CAD_File ( type: esriFieldTypeString, alias: CAD_File, length: 250 )
• Plan_Date ( type: esriFieldTypeDate, alias: Plan_Date, length: 8 )
• AB_Date ( type: esriFieldTypeDate, alias: AB_Date, length: 8 )
• DMP_Status ( type: esriFieldTypeString, alias: DMP_Status, length: 1 , Coded Values: [1: Included in the Master Drainage Plan] , [2: Not Included in the Mater Drainage Plan] )
• Edit_Date ( type: esriFieldTypeDate, alias: Edit_Date, length: 8 )
• Edit_Source ( type: esriFieldTypeString, alias: Edit_Source, length: 250 )
• Zone ( type: esriFieldTypeInteger, alias: Zone , Coded Values: [1: Zone 1] , [2: Zone 2] , [3: Zone 3] , ...9 more... )
• X_Coordinate ( type: esriFieldTypeDouble, alias: X_Coordinate )
• Y_Coordinate ( type: esriFieldTypeDouble, alias: Y_Coordinate )
• Z_Coordinate ( type: esriFieldTypeDouble, alias: Z_Coordinate )
• D_Coordinate ( type: esriFieldTypeString, alias: D_Coordinate, length: 250 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• FacilityID ( type: esriFieldTypeString, alias: FacilityID, length: 30 )
• Data_Dictionary ( type: esriFieldTypeString, alias: Data Dictionary, length: 20 )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• Data_File ( type: esriFieldTypeString, alias: Data File, length: 20 )
• Depth ( type: esriFieldTypeDouble, alias: Depth )
• Datafile ( type: esriFieldTypeString, alias: Datafile, length: 20 )
• Data_Dicti ( type: esriFieldTypeString, alias: Data_Dicti, length: 20 )
• GPS_Height ( type: esriFieldTypeDouble, alias: GPS_Height )
• Northing ( type: esriFieldTypeDouble, alias: Northing )
• Easting ( type: esriFieldTypeDouble, alias: Easting )
• Photo ( type: esriFieldTypeString, alias: Photo, length: 100 )
• Editor ( type: esriFieldTypeString, alias: Editor, length: 2 , Coded Values: [MW: Maryam Wagner] , [SN: Saeid Nouri-Bushehri] , [ST: Intern/Student/ Temporary Staff] , ...6 more... )
• NCTDPlan_No ( type: esriFieldTypeString, alias: NCTDPlan No, length: 18 )
• GBALINK ( type: esriFieldTypeInteger, alias: GBALINK )
• TILE_NO ( type: esriFieldTypeString, alias: TILE_NO, length: 4 )
• SEQ_NO ( type: esriFieldTypeInteger, alias: SEQ_NO )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• INLUCITY ( type: esriFieldTypeSmallInteger, alias: INLUCITY )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• MAINT_BY ( type: esriFieldTypeString, alias: MAINT_BY, length: 255 , Coded Values: [City: City] , [Contractor: Contractor] , [Private: Private] , ...3 more... )
• CMP ( type: esriFieldTypeString, alias: CMP, length: 10 , Coded Values: [Y: Yes] , [N: No] )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

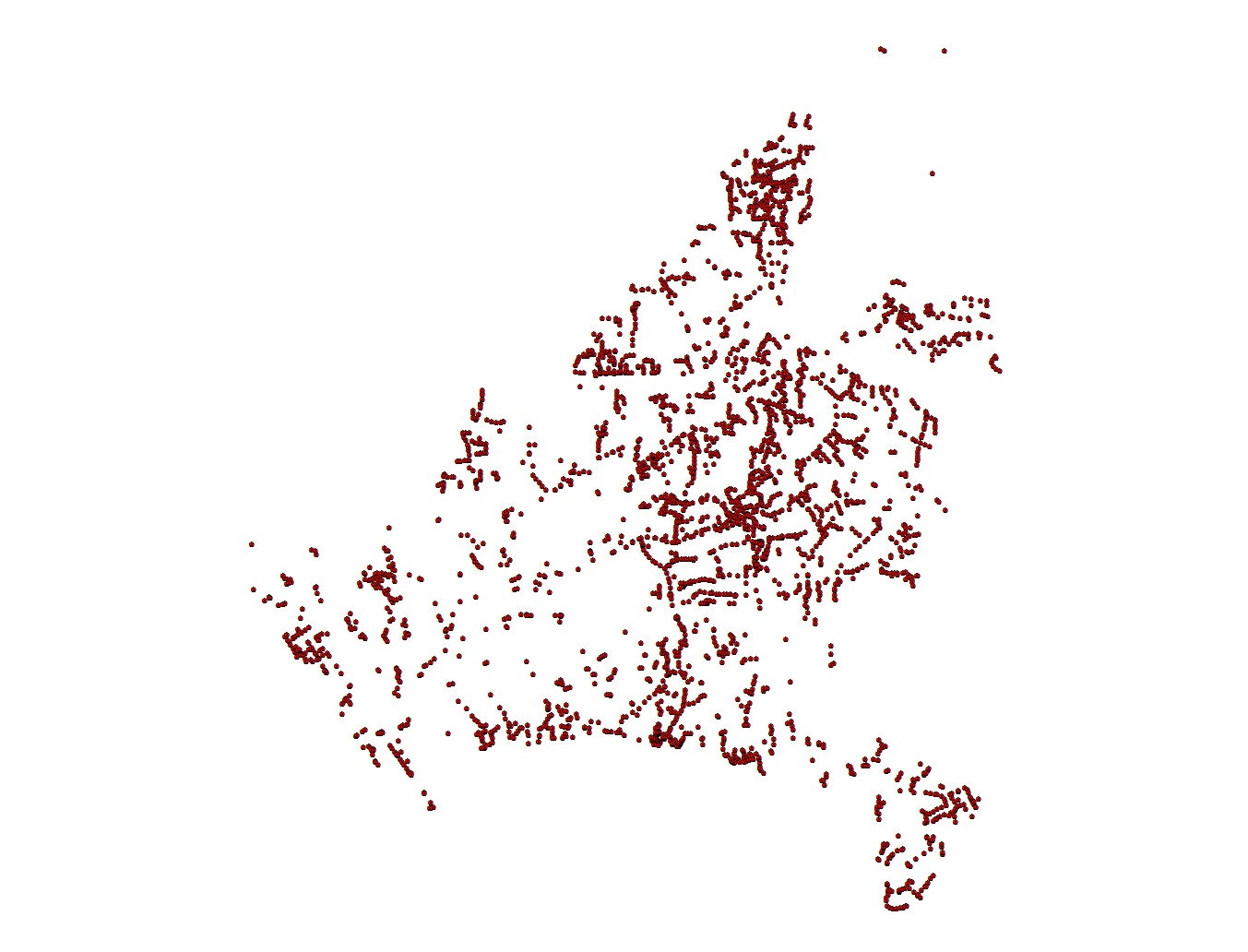

  Iteminfo   Thumbnail   Metadata
