Name: STORM PIPE

Display Field: Drain_Type

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This data was generally mapped from land development plans such as grading and improvement plans or was collected using a Trimble GPS unit or . This data is to be used for inventory of city assets, maintenance information, storm water quality control, and hydrologic studies. The feature attributes include storm drain type, type of pipe material, pipe diameter, invert elevations, slope, Q100, capcity, condition, status, installation date, engineering plan numbers, coordinate data, and owner information.

Service Item Id: da203cbcc60a449c884e390c67dfcb7d

Copyright Text: Maryam Wagner (Senior Engineering Assistant), William Tuck (Engineering Assistant II)

Default Visibility: true

MaxRecordCount: 2000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 9.946403801441193
YMin: 6.9747154712677
XMax: 6257768.535848469
YMax: 2053023.6399993896
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [115, 0, 76, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Drain_Type ( type: esriFieldTypeString, alias: Drain Type, length: 3 , Coded Values: [CH: Channel Open] , [BR: Brow Ditch] , [BC: Box Culvert] , ...8 more... )
• Drain_Subtype ( type: esriFieldTypeString, alias: Drain Subtype, length: 6 , Coded Values: [D-70: Minor Drainage Channel (SDRSD)] , [D-71: Major Drainage Channel Concrete(SDRSD)] , [D-74: Graded Earth Channel(SDRSD)] , ...12 more... )
• Material ( type: esriFieldTypeString, alias: Material, length: 6 , Coded Values: [ABS: Acrylonitrile-butadience-styrene composit] , [ACP: Asbestos cement pipe] , [ASCONC: Asphalt concrete] , ...34 more... )
• Drain_Length ( type: esriFieldTypeDouble, alias: Drain Length )
• Diam_Ht ( type: esriFieldTypeInteger, alias: Diam_Height , Coded Values: [4: 4"] , [6: 6"] , [8: 8"] , ...26 more... )
• Culvert_Top ( type: esriFieldTypeInteger, alias: Culvert Top )
• Culvert_Bot ( type: esriFieldTypeInteger, alias: Culvert_Bottom )
• Slope ( type: esriFieldTypeDouble, alias: Slope )
• Up_Inv_Elev ( type: esriFieldTypeDouble, alias: Up_Inv_Elev )
• Down_Inv_Elev ( type: esriFieldTypeDouble, alias: Down_Inv_Elev )
• Q100 ( type: esriFieldTypeDouble, alias: Q100 )
• DMP_Status ( type: esriFieldTypeString, alias: DMP Status, length: 1 , Coded Values: [1: Included in the Master Drainage Plan] , [2: Not Included in the Mater Drainage Plan] )
• Capacity ( type: esriFieldTypeInteger, alias: Capacity , Coded Values: [1: Adequate] , [2: Inadequate] , [3: Proposed] , ...4 more... )
• Function_ ( type: esriFieldTypeInteger, alias: Function , Coded Values: [1: Maintained in good condition] , [2: Not maintained in poor condition] , [3: Overgrown] , ...4 more... )
• Status ( type: esriFieldTypeInteger, alias: Status , Coded Values: [1: Active] , [2: Abandoned] , [3: Filled and abandoned] , ...8 more... )
• Condition ( type: esriFieldTypeInteger, alias: Condition , Coded Values: [1: Very Good] , [2: Good] , [3: Fair] , ...3 more... )
• BMP ( type: esriFieldTypeString, alias: BMP, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• BMP_Type ( type: esriFieldTypeString, alias: BMP Type, length: 8 , Coded Values: [BBASIN: Bioretention Basin] , [BSWALE: Bioretention Swale] , [CONWET: Constructed Wetland] , ...19 more... )
• Watershed ( type: esriFieldTypeString, alias: Watershed, length: 6 , Coded Values: [902.11: Lower Ysidora] , [903.11: Mission] , [903.12: Bonsal] , ...5 more... )
• Plan_Date ( type: esriFieldTypeDate, alias: Plan Date, length: 8 )
• AB_Date ( type: esriFieldTypeDate, alias: As-Built Date, length: 8 )
• IPlan_No ( type: esriFieldTypeString, alias: IPlan No, length: 18 )
• GPlan_No ( type: esriFieldTypeString, alias: GPlan No, length: 18 )
• MPlan_No ( type: esriFieldTypeString, alias: MPlan No, length: 50 )
• Plan_History ( type: esriFieldTypeString, alias: Plan History, length: 250 )
• CAD_File ( type: esriFieldTypeString, alias: CAD File, length: 250 )
• Editor ( type: esriFieldTypeString, alias: Editor, length: 2 , Coded Values: [MW: Maryam Wagner] , [SN: Saeid Nouri-Bushehri] , [ST: Intern/Student/ Temporary Staff] , ...6 more... )
• Edit_Date ( type: esriFieldTypeDate, alias: Edit_Date, length: 8 )
• Edit_Source ( type: esriFieldTypeString, alias: Edit_Source, length: 250 )
• Owner ( type: esriFieldTypeString, alias: Owner, length: 3 , Coded Values: [Cit: City of Oceanside] , [Pvt: Private] , [Car: Carlsbad] , ...12 more... )
• Zone ( type: esriFieldTypeInteger, alias: Zone , Coded Values: [1: Zone 1] , [2: Zone 2] , [3: Zone 3] , ...9 more... )
• X_Coordinate ( type: esriFieldTypeDouble, alias: X_Coordinate )
• Y_Coordinate ( type: esriFieldTypeDouble, alias: Y_Coordinate )
• Z_Coordinate ( type: esriFieldTypeDouble, alias: Z_Coordinate )
• D_Coordinate ( type: esriFieldTypeString, alias: D_Coordinate, length: 250 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• Up_Node ( type: esriFieldTypeString, alias: Up Node, length: 30 )
• Down_Node ( type: esriFieldTypeString, alias: Down Node, length: 30 )
• FacilityID ( type: esriFieldTypeString, alias: FacilityID, length: 30 )
• Data_Dictionary ( type: esriFieldTypeString, alias: Data Dictionary, length: 20 )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• GPS_Length ( type: esriFieldTypeDouble, alias: GPS Length )
• Data_File ( type: esriFieldTypeString, alias: Data File, length: 20 )
• Photo ( type: esriFieldTypeString, alias: Photo, length: 100 )
• Data_Dicti ( type: esriFieldTypeString, alias: Data_Dicti, length: 20 )
• Datafile ( type: esriFieldTypeString, alias: Datafile, length: 20 )
• Northing ( type: esriFieldTypeDouble, alias: Northing )
• Easting ( type: esriFieldTypeDouble, alias: Easting )
• NCTDPlan_No ( type: esriFieldTypeString, alias: NCTDPlan No, length: 18 )
• GBALINK ( type: esriFieldTypeInteger, alias: GBALINK )
• TILE_NO ( type: esriFieldTypeString, alias: TILE_NO, length: 4 )
• SEQ_NO ( type: esriFieldTypeInteger, alias: SEQ_NO )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• INLUCITY ( type: esriFieldTypeSmallInteger, alias: INLUCITY )
• STORM_VIDEO_1 ( type: esriFieldTypeString, alias: STORM_VIDEO_1, length: 30 )
• STORM_VIDEO_2 ( type: esriFieldTypeString, alias: STORM_VIDEO_2, length: 30 )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
• CMP ( type: esriFieldTypeString, alias: CMP, length: 10 , Coded Values: [Y: Yes] , [N: No] )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

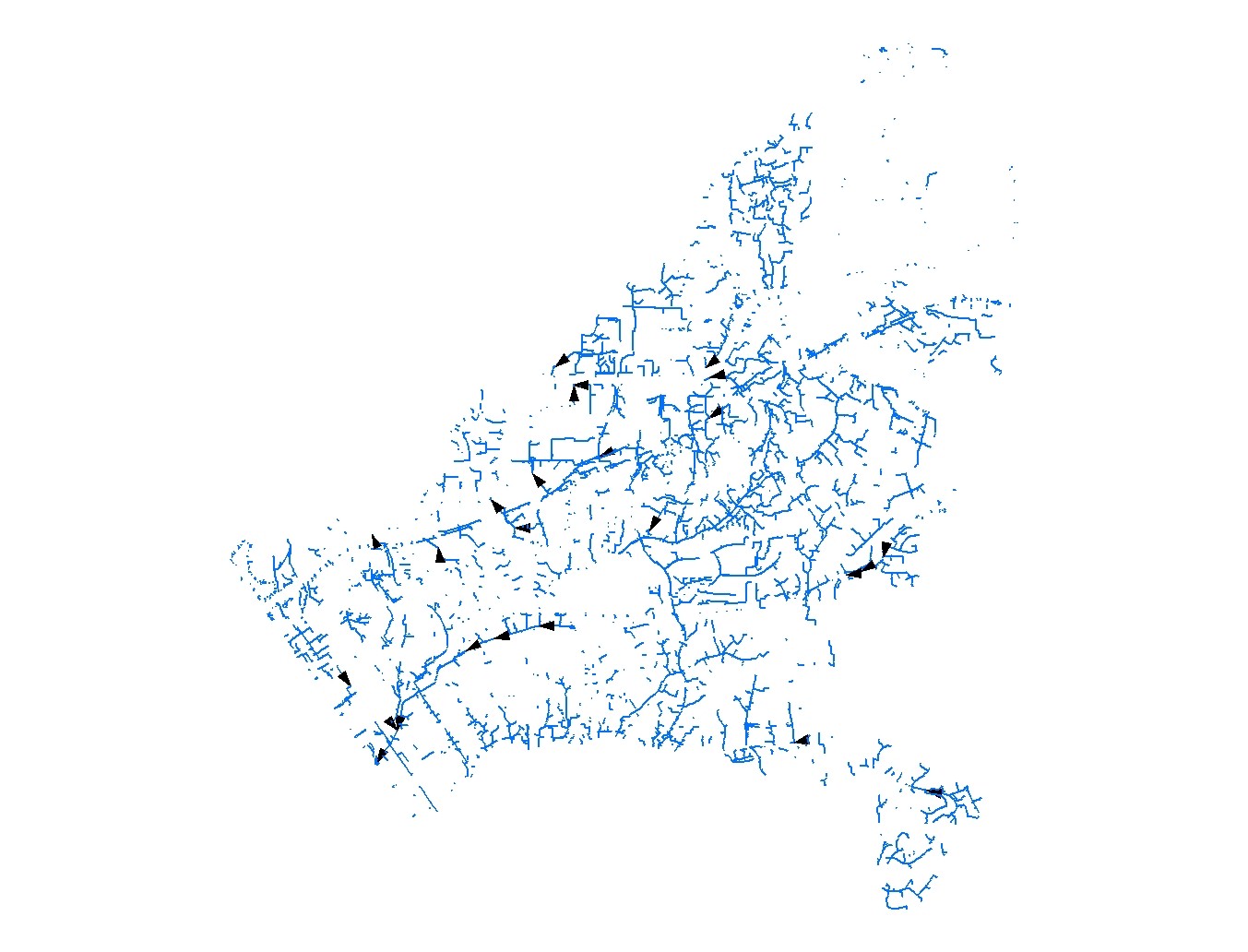

  Iteminfo   Thumbnail   Metadata
